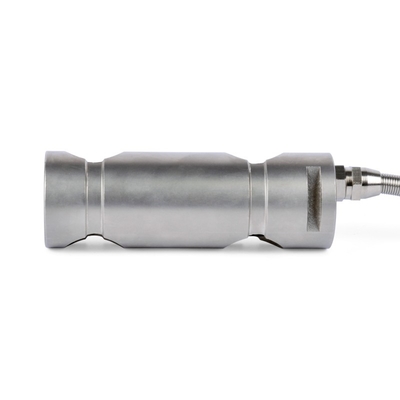

Traditional Alloy Steel Rated 3T 5T ​​10T Clevis Load Pin Sensor Shaft Pin Load Cell For Cranes / Hoist Overload Protection

Load pin, also called clevis pin load cells, are uniquely designed for applications where clevis pins, shear pins, shear axles or pulley shafts are carrying a load. Load pins are also common in the oil industry on coiled tubing injectors to measure both the injector forces and the hanging weight of the tubing. Clevis pin load cells are manufactured to exactly replace the existing shear pin and provide real-time force monitoring of loads carried by these types of devices. Application:

Unlike the majority of measuring devices, a Load Measuring Pin can be fitted or retrofitted without the need for expensive modifications or fittings. The pin is strain gauged in two shear planes.

Clevis Pin Loading -- Crane Loads -- Anchor Line Loading -- Tongue & Shackle Connections -- Pulley & Sheave Loading -- Hydraulic Cylinder Loading

The wire rope load cell sensor is recommended for measuring load and overload to ensure the safety of industrial lifting installations, overhead cranes, winches and hoists. It is perfectly suitable for implementation on existing lifting systems in order to upgrade in compliance with actual safety standards without heavy modification. It is recommend to be used with a control unit (OMS-370C, SUMT-QZX(B)) easily coupled with a digital display with 9 digits(red colour)

Weighing limiter:SUMIT-QXZ(B)

Control unit:OMS-370C

 Big LED display
